Full Automatic Mango Processing Line 1-5T/H

Full Automatic Mango Processing Line 1-5T/H

Plaats van herkomst Sjanghai
Merknaam Gofun
Certificering CE, ISO certificate
Modelnummer GFM-MPL
Productgegevens
Garantie:
12 maanden
Certificering:
CE/ ISO9001
Spanning:
220/380/440V, volgens klanten
Vermogen (w):
7,5 kW
Type:
Turnkey verwerkingslijn van A tot Z
Materiaal:
SUS304/SUS316
Capaciteit:
1 t/u-20 t/u
Productnaam:
Mango gedroogde verwerkingsmachine
After-sales service:
Overzeese technische ondersteuning
Sollicitatie:
Mango
Voorwaarde:
Nieuw
Gewicht:
Aangepast
Markeren:

full automatic mango processing line

,

mango processing line 1-5T/H

,

automatic mango processing equipment

Betaling en verzendvoorwaarden
Min. bestelaantal
1 set
Prijs
Bespreekbaar
Verpakking Details
Internationaal standaardpakket voor verzending
Levertijd
45 ~ 90 dagen
Betalingscondities
T/T,Western Union,L/C
Levering vermogen
100 sets per jaar
Productbeschrijving

Full Automatic Mango Processing Line 1-5T/H

This 1-5T/H full automatic mango processing line is custom-built for small and medium food factories in Southeast Asia and Africa, covering every core step from fresh mango sorting, washing, pulping, refining to final product forming. Made of food-grade 304 stainless steel, it cuts manual operation by 70% while keeping the whole process pollution-free. The line supports flexible adjustment of production capacity, which can match the mango output of local farms perfectly, avoiding raw material waste during peak harvest seasons. It comes with a 12-month warranty and on-site installation guidance, and we have already delivered over 30 similar projects in Thailand, Vietnam, Indonesia and Ghana. It can help you quickly start a mango processing business with low cost and stable operation.

Technical Specifications
Product Name One-stop solution for mango processing line
Fresh Fruit Inlet Capacity 500kg per hour ~ 25 tons per hour, customized
Raw Material Fresh mango
End Products Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage
Final Product Brix 14%~20%
Final Package Options Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Operator Requirement About 10~12 persons
Voltage 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Advantages Energy-saving, High efficiency, Water-saving, Stable performance
Processing Flowchart
FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Complete mango processing line overview showing all equipment components
Final Products & Packaging Options
Our processing line utilizes fresh mango and mango paste as raw materials to produce various final products including mango paste, mango sauce, mango juice, mango powder, diced mango, and dried mango.
Various mango products produced by our processing line including puree, juice, and dried mango
Available packaging formats include aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, and gable top cartons.
Different packaging options for mango products showing various container types
Key Features
  • Full-process Integration: Comprehensive mango processing from pretreatment to bottling of finished products within a single integrated system
  • Safety Assurance: Built with 304/316 stainless steel and FDA/CE certification for ensuring food safety standards
  • Smart and Productive: Precise parameter control via PLC with adjustable capacity ranging from 500kg/h to 10t/h
  • Energy-efficient and Eco-friendly: Low-power configuration to minimize operational expenses
  • Versatile Functionality: Capable of processing mango pulp, various juices, and vegetable purees
  • Complete Support: Tailored design, installation, commissioning, technical training, and post-sales assistance services
Detailed Process Steps
1. Discharge Platform
Specialized drainage platform with water guns simplifies raw mango unloading from trucks while providing pre-washing capabilities to enhance production line efficiency.
2. Elevator
This machine transports fresh mango from outside the building to inside the processing facility.
Mango elevator machine for transporting fresh fruit into processing facility
3. Washing
Thorough washing of fresh fruits prior to crushing using bubble washers and brush & spray washers. Optional ultrasonic and ozone cleaning methods available for enhanced cleaning efficacy.
Mango washing process showing fruit cleaning equipment
4. Sorting

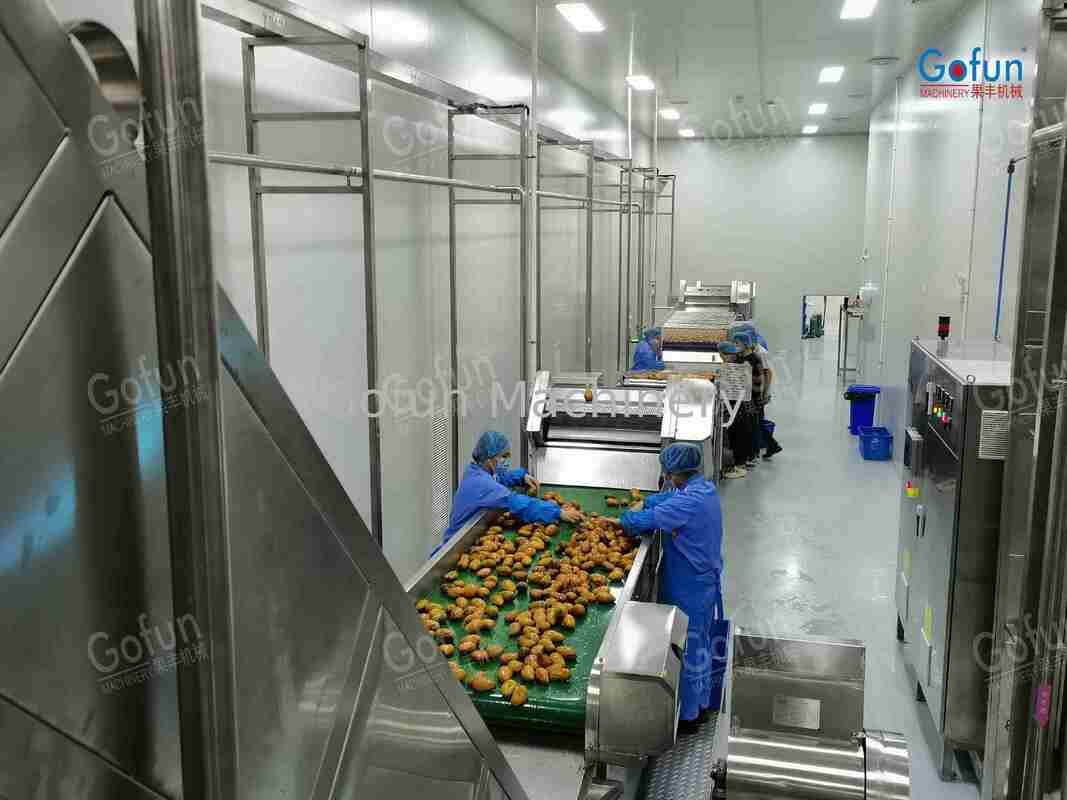

Visual inspection by staff after washing to identify defects, ensuring only high-quality fruits proceed through the production line.
Mango sorting process with quality control inspection
5. Destoning
Mango remover operates at 1470 r/min, effectively crushing fresh mango to ensure thorough cleaning of core and skin, maximizing pulp yield and production efficiency.
Mango destoning machine for removing pits and skins
6. Preheating
Adjustable temperature pre-heater (45℃ to 85℃) increases juice yield for subsequent processing while protecting final product color and taste.
Mango preheating equipment for temperature treatment
7. Pulper and Refiner
Operating at 1470 r/min, this machine generates centrifugal force to pass product through screens for refinement. Suitable for various fruits including passion fruit, tomatoes, peaches, apricots, mangoes, and apples.
Pulper and refiner machine for mango processing
8. Horizontal Spiral Centrifugal
Reduces solids and impurities to ensure mango pulp puree is free from contaminants and black spots.
Horizontal spiral centrifugal machine for impurity removal
9. Sterilizing
Tube-in-tube type sterilizer with adjustable temperature and retention time for different product requirements. Programmable control system ensures precise automation.
Sterilization equipment for mango processing ensuring product safety
10. Aseptic Filling
Operates with tube-in-tube sterilizer in closed cycle system. Vapor-protected filling cavity maintains sterility throughout the packaging process.
Aseptic filling machine for mango products
11. Storage or Blending
Final product can be stored as-is or used as raw material for producing mango sauce or other products.
Final mango product storage options showing bulk containers
Animation demonstrating mango processing line operation
Animation showing mango packaging process
