Industrial Mango Juice & Dried Fruit Production Line
  • Industrial Mango Juice & Dried Fruit Production Line
  • Industrial Mango Juice & Dried Fruit Production Line
  • Industrial Mango Juice & Dried Fruit Production Line
  • Industrial Mango Juice & Dried Fruit Production Line
  • Industrial Mango Juice & Dried Fruit Production Line
  • Industrial Mango Juice & Dried Fruit Production Line
  • Industrial Mango Juice & Dried Fruit Production Line
  • Industrial Mango Juice & Dried Fruit Production Line
  • Industrial Mango Juice & Dried Fruit Production Line
Industrial Mango Juice & Dried Fruit Production Line

Industrial Mango Juice & Dried Fruit Production Line

Plaats van herkomst Sjanghai
Merknaam Gofun
Certificering CE, ISO certificate
Modelnummer GFM-MPL
Productgegevens
Garantie:
12 maanden
Certificering:
CE/ ISO9001
Spanning:
220/380/440V, volgens klanten
Vermogen (w):
7,5 kW
Type:
Turnkey verwerkingslijn van A tot Z
Materiaal:
SUS304/SUS316
Capaciteit:
1 t/u-20 t/u
Productnaam:
Mango gedroogde verwerkingsmachine
After-sales service:
Overzeese technische ondersteuning
Sollicitatie:
Mango
Voorwaarde:
Nieuw
Gewicht:
Aangepast
Markeren:

industrial mango juice production line

,

dried fruit processing equipment

,

mango processing line with warranty

Betaling en verzendvoorwaarden
Min. bestelaantal
1 set
Prijs
Bespreekbaar
Verpakking Details
Internationaal standaardpakket voor verzending
Levertijd
45 ~ 90 dagen
Betalingscondities
T/T,Western Union,L/C
Levering vermogen
100 sets per jaar
Productbeschrijving

Industrial Mango Juice & Dried Fruit Production Line

This industrial mango juice and dried fruit integrated production line is designed for enterprises that need to make two kinds of products at the same time. It retains the natural sweetness and nutrition of mango to the largest extent through low-temperature juicing and hot air circulation drying. The juice part is equipped with precise sterilization and filling modules, which can produce long-shelf-life bottled mango juice. The dried fruit part can adjust the softness and dryness of finished products according to local market preferences, to meet different consumer demands. The whole line has passed ISO food safety certification, and it has stable performance even in high temperature and high humidity environment. We provide 7/24 remote technical support to help you solve operation problems at any time.

Technical Specifications
Product Name One-stop solution for mango processing line
Fresh Fruit Inlet Capacity 500kg per hour ~ 25 tons per hour, customized
Raw Material Fresh mango
End Products Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage
Final Product Brix 14%~20%
Final Package Options Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Operator Requirement About 10~12 persons
Voltage 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Advantages Energy-saving, High efficiency, Water-saving, Stable performance
Processing Flowchart
FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

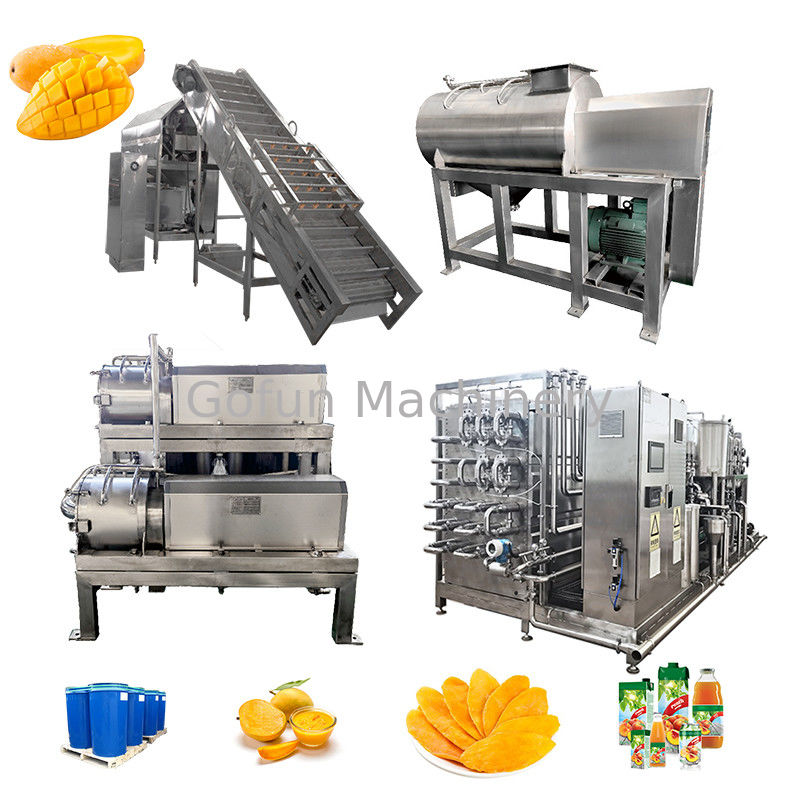

Complete mango processing line overview showing all equipment components
Final Products & Packaging Options
Our processing line utilizes fresh mango and mango paste as raw materials to produce various final products including mango paste, mango sauce, mango juice, mango powder, diced mango, and dried mango.
Various mango products produced by our processing line including puree, juice, and dried mango
Available packaging formats include aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, and gable top cartons.
Different packaging options for mango products showing various container types
Key Features
  • Full-process Integration: Comprehensive mango processing from pretreatment to bottling of finished products within a single integrated system
  • Safety Assurance: Built with 304/316 stainless steel and FDA/CE certification for ensuring food safety standards
  • Smart and Productive: Precise parameter control via PLC with adjustable capacity ranging from 500kg/h to 10t/h
  • Energy-efficient and Eco-friendly: Low-power configuration to minimize operational expenses
  • Versatile Functionality: Capable of processing mango pulp, various juices, and vegetable purees
  • Complete Support: Tailored design, installation, commissioning, technical training, and post-sales assistance services
Detailed Process Steps
1. Discharge Platform
Specialized drainage platform with water guns simplifies raw mango unloading from trucks while providing pre-washing capabilities to enhance production line efficiency.
2. Elevator
This machine transports fresh mango from outside the building to inside the processing facility.
Mango elevator machine for transporting fresh fruit into processing facility
3. Washing
Thorough washing of fresh fruits prior to crushing using bubble washers and brush & spray washers. Optional ultrasonic and ozone cleaning methods available for enhanced cleaning efficacy.
Mango washing process showing fruit cleaning equipment
4. Sorting
Visual inspection by staff after washing to identify defects, ensuring only high-quality fruits proceed through the production line.
Mango sorting process with quality control inspection
5. Destoning
Mango remover operates at 1470 r/min, effectively crushing fresh mango to ensure thorough cleaning of core and skin, maximizing pulp yield and production efficiency.
Mango destoning machine for removing pits and skins
6. Preheating
Adjustable temperature pre-heater (45℃ to 85℃) increases juice yield for subsequent processing while protecting final product color and taste.
Mango preheating equipment for temperature treatment
7. Pulper and Refiner
Operating at 1470 r/min, this machine generates centrifugal force to pass product through screens for refinement. Suitable for various fruits including passion fruit, tomatoes, peaches, apricots, mangoes, and apples.
Pulper and refiner machine for mango processing
8. Horizontal Spiral Centrifugal
Reduces solids and impurities to ensure mango pulp puree is free from contaminants and black spots.
Horizontal spiral centrifugal machine for impurity removal
9. Sterilizing
Tube-in-tube type sterilizer with adjustable temperature and retention time for different product requirements. Programmable control system ensures precise automation.
Sterilization equipment for mango processing ensuring product safety
10. Aseptic Filling
Operates with tube-in-tube sterilizer in closed cycle system. Vapor-protected filling cavity maintains sterility throughout the packaging process.
Aseptic filling machine for mango products
11. Storage or Blending
Final product can be stored as-is or used as raw material for producing mango sauce or other products.
Final mango product storage options showing bulk containers
Animation demonstrating mango processing line operation
Animation showing mango packaging process
